Lantor Soric, Coremat XM, Xi, XF & XM: The Complete Guide to Composite Core Materials
Choosing the right composite core material is one of the most important decisions when designing lightweight, high-performance composite structures.
Whether you’re manufacturing boat hulls, vehicle components, architectural panels, or industrial mouldings, selecting the correct core material can help reduce weight, improve stiffness, optimise resin consumption, and enhance surface finish quality.
Lantor’s range of advanced composite core materials—including Soric®, Coremat XM®, Xi®, XF® and finish tissues—has become a preferred choice across marine, transport, construction and industrial sectors because of its ability to simplify manufacturing while delivering exceptional mechanical performance.
In this guide, you’ll learn:
- What Lantor composite core materials are
- The differences between Soric, Coremat XM, Xi and XF
- Which product suits specific applications
- Benefits for resin infusion and hand lay-up processes
- How to choose the best material for your project
What Are Composite Core Materials?
A composite core material is placed between reinforcing layers to increase stiffness and thickness while minimising weight.
Rather than using additional layers of reinforcement and resin—which can increase weight and manufacturing costs—core materials create stronger, lighter structures with improved performance.
Key Benefits of Core Materials
- Increased stiffness-to-weight ratio
- Reduced overall laminate weight
- Better resin distribution during infusion
- Improved thickness control
- Enhanced surface quality
Lower material consumption and production costs
These advantages explain why composite cores are widely used in industries ranging from boat building and transportation to renewable energy and construction.
Why Choose Lantor Composite Core Materials?
Lantor has established a strong reputation for developing innovative core materials designed specifically for modern composite manufacturing techniques such as:
- Vacuum infusion
- Resin infusion
- Hand lay-up
- Closed mould processes
Their product range helps manufacturers improve efficiency while maintaining excellent mechanical performance and consistent part quality.
Lantor Soric: Lightweight Core Material for Resin Infusion
Among Lantor’s most recognised products, Soric® is widely used as a flow media and core material in resin infusion applications.
Soric creates integrated resin channels throughout the laminate, helping resin flow efficiently across complex moulds while simultaneously adding stiffness and thickness.
Benefits of Lantor Soric
- Excellent resin flow characteristics
- Reduced infusion times
- Improved laminate rigidity
- Lightweight construction
- Consistent thickness control
- Reduced print-through on finished parts

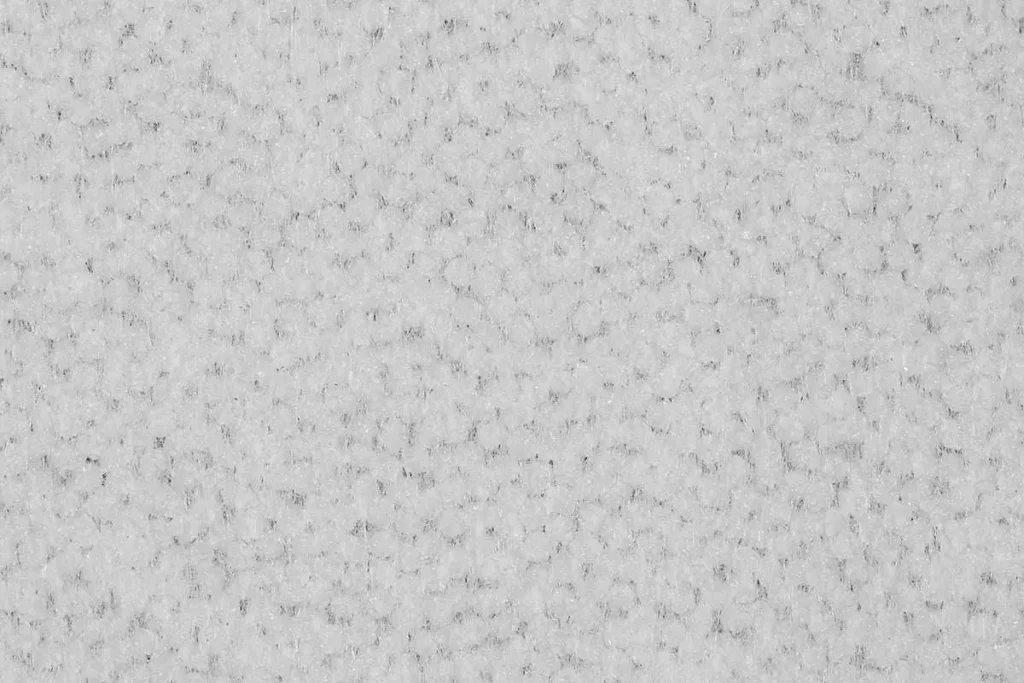

Lantor Soric TF is designed for efficient resin distribution and thickness control during infusion processes.
It is particularly suited to:
- Boat hulls
- Marine decks
- Vehicle panels
- Industrial composite components

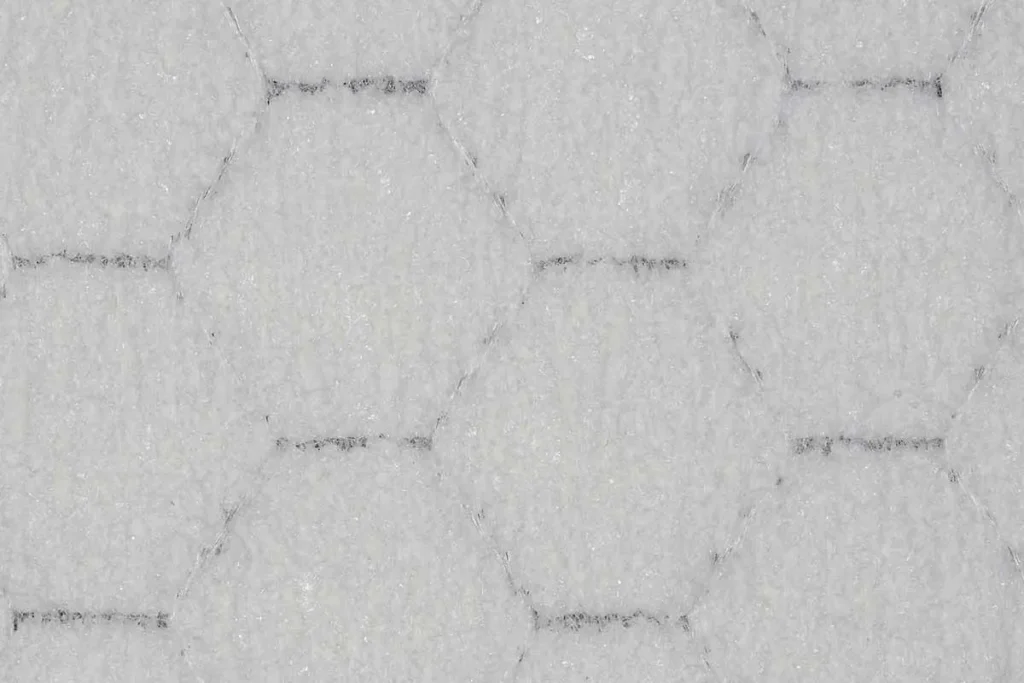

Soric LRC provides a lighter and more flexible solution while maintaining excellent structural benefits.
Typical applications include:
- Complex moulded shapes
- Curved composite structures
- Surface-sensitive components
- Lightweight reinforcement zones
Lantor Coremat XM: Building Thickness Without Excess Weight
When greater laminate thickness is required without significantly increasing weight, Coremat XM® offers an excellent solution.
Coremat products are engineered to provide thickness, durability and consistent performance while maintaining efficient manufacturing processes.
Key Advantages of Coremat XM
- Increased laminate thickness
- Improved stiffness
- Excellent compression resistance
- Consistent resin absorption
- Compatible with infusion and hand lay-up
Common Coremat XM Applications
- Boat hulls and decks
- Sanitary ware
- Vehicle body panels
- Industrial mouldings
- Architectural products
Manufacturers frequently select Coremat XM when a balance between strength, thickness and weight reduction is required.

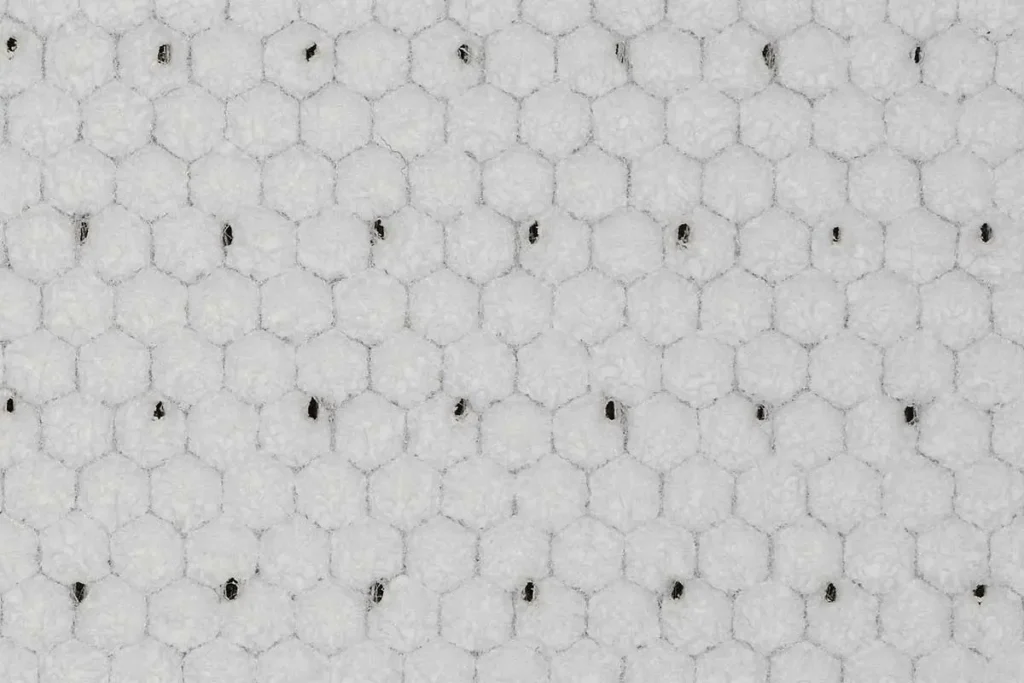

Lantor Coremat XM (2mm, 80m² per roll): Known for its durability, this material offers superior thickness control and consistency in infusion processes.

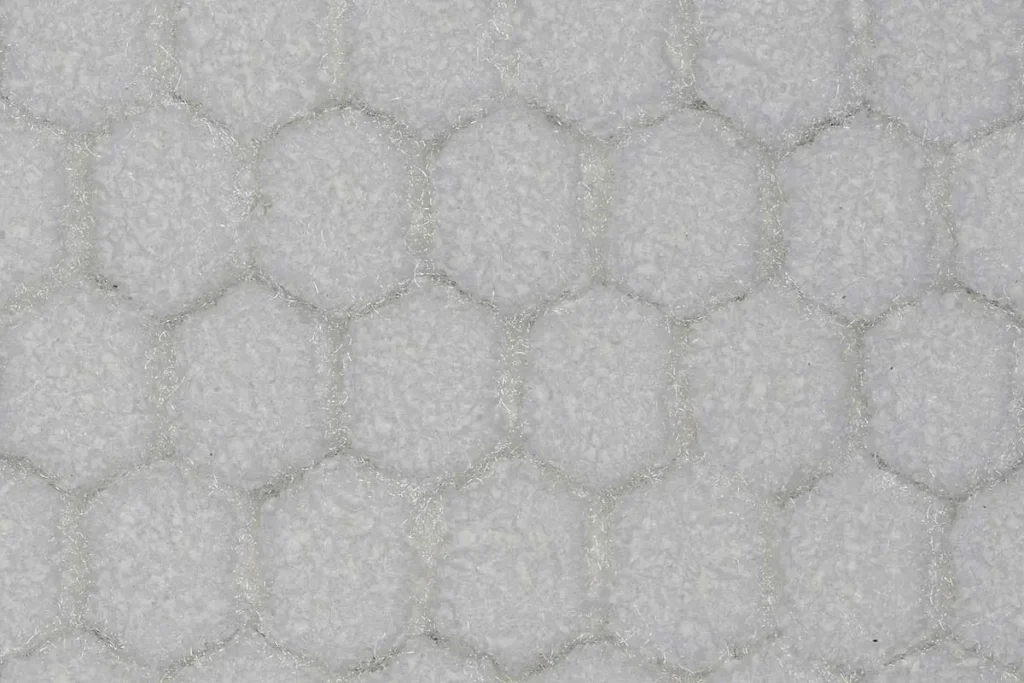

Lantor XM (10mm, 15m roll): Ideal for various industrial applications requiring significant thickness and performance.
Lantor Xi: Advanced Structural Performance
The Lantor Xi series has been developed to provide improved mechanical properties and enhanced resin flow control.
These materials are often chosen where structural performance and surface finish quality are equally important.
Benefits of Lantor Xi
- Enhanced structural integrity
- Improved resin distribution
- Better surface finish
- Excellent dimensional stability
- Reliable infusion performance
Ideal Applications
- High-performance marine components
- Commercial transportation
- Structural composite panels
- Industrial engineering projects
For manufacturers seeking a premium core solution, Xi delivers increased confidence in demanding applications.

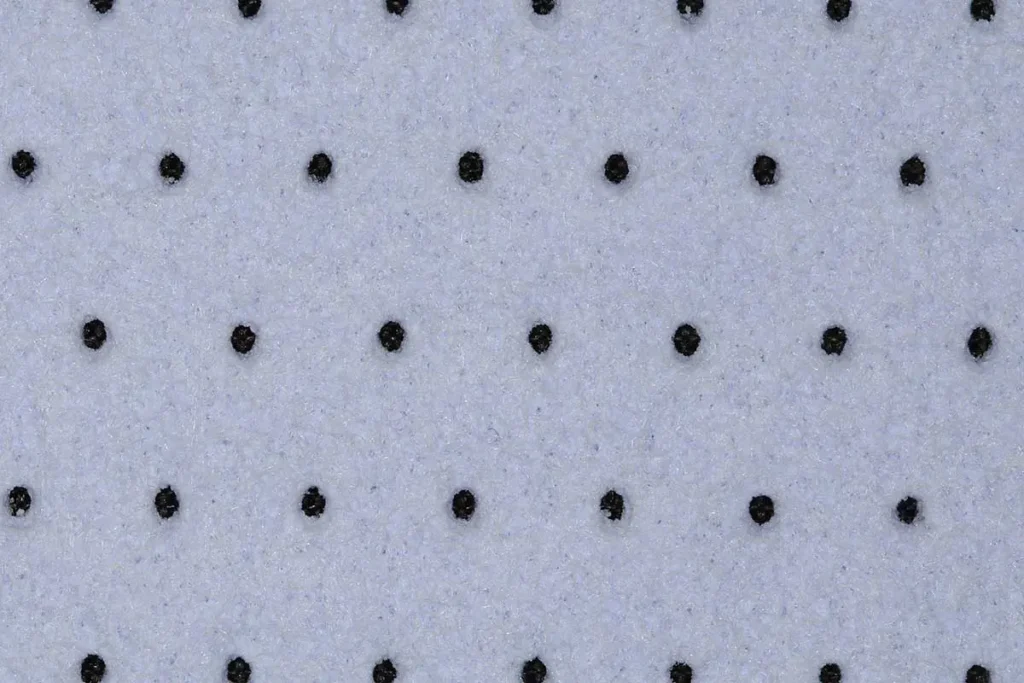

Lantor Xi (3mm, 50m roll):
Designed for improved mechanical properties and infusion control, this product is perfect for applications requiring high-quality surface finishes.
Lantor Xi (4mm, 40m roll):
Offers greater thickness for enhanced structural integrity and performance.
What About Lantor XF?
Lantor XF products are designed to support efficient manufacturing while improving laminate consistency and mechanical performance.
They are often selected for projects requiring:
- Controlled resin uptake
- Reliable processing
- Lightweight construction
- Improved production efficiency
As with the rest of the Lantor range, XF materials help manufacturers optimise both performance and manufacturing costs.
Lantor Finish Tissues for Superior Surface Quality
Even the strongest laminate can be compromised by poor surface appearance.
Lantor finish tissues are engineered to improve aesthetics while helping reduce print-through and surface imperfections.
Benefits of Finish Tissue
- Smooth surface finish
- Improved cosmetic appearance
- Reduced fibre print-through
- Better paint and coating results
- Enhanced durability
This makes finish tissues particularly valuable in visible marine, automotive and architectural applications.

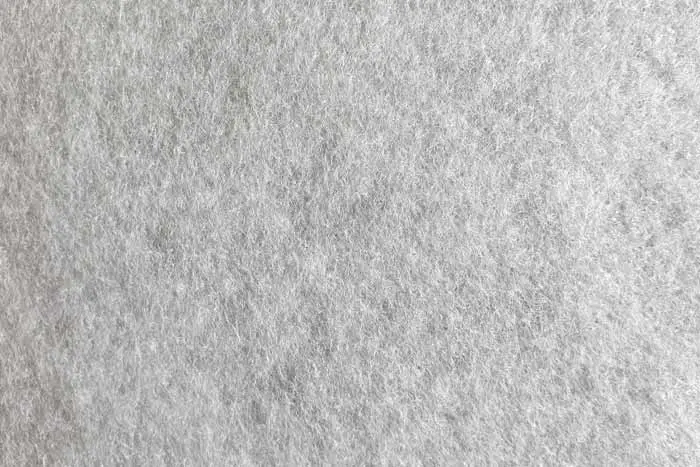

Lantor d7760 Finish Tissue (60g, 110m roll):
This lightweight tissue is designed to create smooth and aesthetically pleasing finishes, perfect for various surface applications.
Applications for Lantor Composite Core Materials
Lantor solutions are used across a wide range of industries.
Marine
- Hulls
- Decks
- Cabin structures
- Internal composite components
Automotive & Transportation
- Body panels
- Structural sections
- Lightweight vehicle components
Construction
- Architectural panels
- Structural composite assemblies
- Façade systems
Industrial Manufacturing
- Tanks
- Covers
- Machinery housings
- Custom composite mouldings
How to Choose the Right Lantor Core Material
The best material depends on your manufacturing process and performance requirements.
|
Requirement
|
Recommended Product
|
|---|---|
|
Fast resin infusion
|
Lantor Soric
|
|
Lightweight stiffness
|
Lantor Soric
|
|
Thickness build-up
|
Coremat XM
|
|
Enhanced Structural Performance
|
Xi
|
|
Surface quality improvement
|
Finish Tissue
|
|
Complex composite geometrics
|
Soric LRC
|
Frequently Asked Questions
What is Lantor Soric used for?
Lantor Soric is used as a lightweight core material that improves resin flow, laminate stiffness and thickness control in resin infusion processes.
What's the difference between Soric and Coremat XM?
Soric primarily enhances resin flow and stiffness during infusion, while Coremat XM is commonly used to increase laminate thickness without significantly increasing weight.
Can Lantor materials be used in resin infusion?
Yes. Soric, Coremat XM, Xi and related products are designed to perform exceptionally well in resin infusion and hand lay-up manufacturing methods.
Which industries use Lantor products?
Marine, automotive, transportation, construction and industrial manufacturing sectors all use Lantor composite core materials.
Find the Right Lantor Composite Solution
Whether you’re looking to improve infusion efficiency, reduce weight, increase laminate thickness or achieve a premium surface finish, Lantor’s range of composite core materials provides a proven solution.
Need help selecting the right material? Contact the Tricel Composites technical team for expert advice on Soric, Coremat XM, Xi, XF and finish tissue products.
